NVIDIA ConnectX-7 NDR 400Gb/s InfiniBand Smart Adapter MCX755106AS-HEAT
Dettagli:
| Marca: | Mellanox |
| Numero di modello: | MCX755106A-HEAT (900-9x7Ah-0078-DTZ) |
| Documento: | Connectx-7 infiniband.pdf |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 pz |
|---|---|
| Prezzo: | Negotiate |
| Imballaggi particolari: | Scatola esterna |
| Tempi di consegna: | Basato sull'inventario |
| Termini di pagamento: | T/T |
| Capacità di alimentazione: | Fornitura per progetto/batch |
|
Informazioni dettagliate |
|||
| Modello n.: | MCX755106A-HEAT (900-9x7Ah-0078-DTZ) | Porti: | 2-port |
|---|---|---|---|
| Tecnologia: | Infiniband | Tipo di interfaccia: | OSFP56 |
| Specifica: | 16,7 cm x 6,9 cm | Origine: | India / Israele / Cina |
| velocità di trasmissione: | 200 gbe | Interfaccia host: | Gen3 x16 |
| Evidenziare: | Nvidia ConnectX-7 InfiniBand adapter,400Gb/s network card,Smart adapter with HEAT technology |
||
Descrizione di prodotto

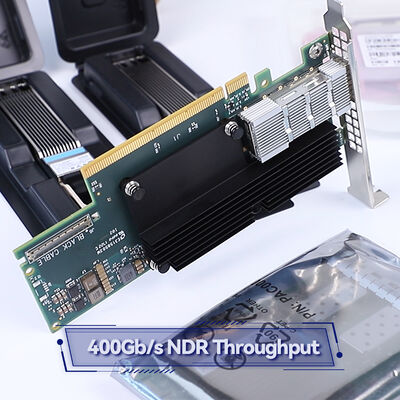

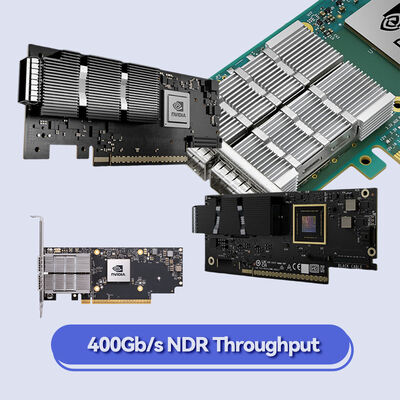

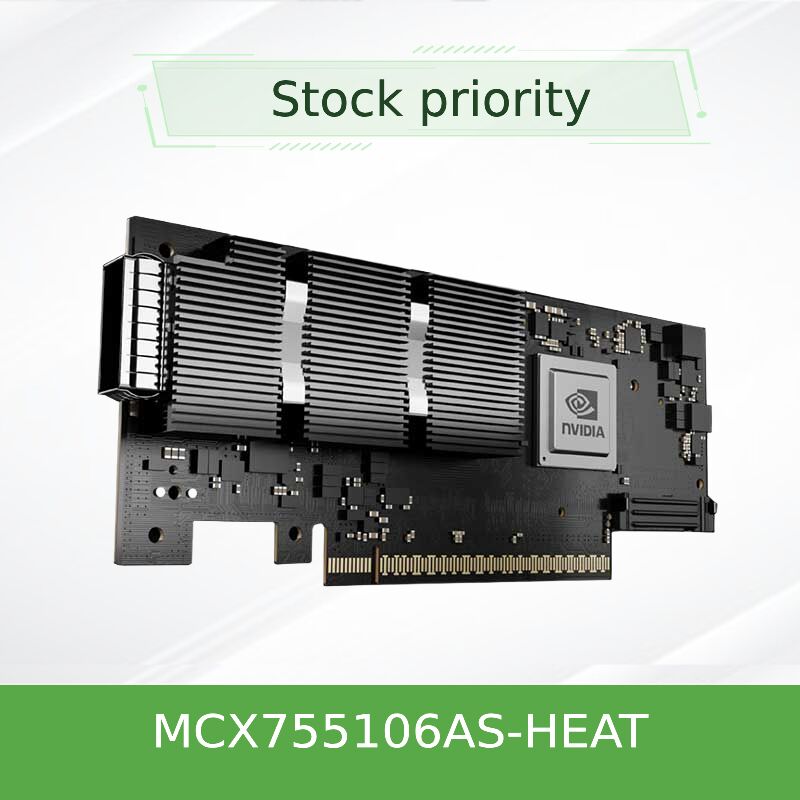

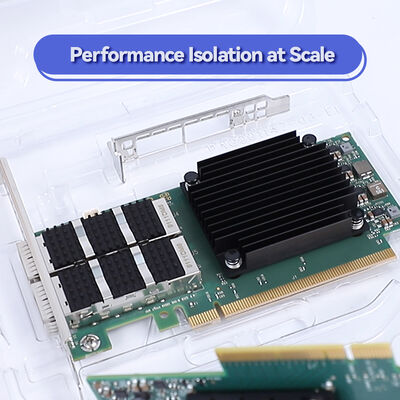

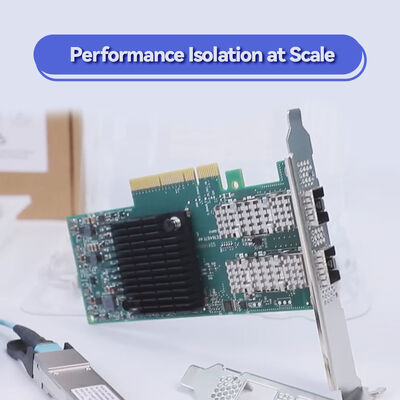

NVIDIA ConnectX-7 NDR 400Gb/s InfiniBand Smart Adapter
Model: MCX755106AS-HEAT | PCIe Gen5 Dual-Port 400GbE / NDR
Ultra-low latency RDMA networking for AI factories, HPC clusters, and hyperscale cloud. Supports InfiniBand NDR (400Gb/s) and Ethernet up to 400GbE. Features In-Network Computing engines, hardware security acceleration, and GPUDirect Storage readiness.
Product Overview
The NVIDIA ConnectX-7 family redefines data center interconnectivity with up to 400Gb/s bandwidth, hardware-based reliable transport, and advanced in-network computing. The model MCX755106AS-HEAT belongs to the ConnectX-7 VPI adapter series supporting both InfiniBand (NDR/HDR/EDR) and Ethernet (400GbE to 10GbE).
Built for AI, scientific computing, and modern software-defined storage, it delivers sub-microsecond latency and frees CPU cores via acceleration engines for security, virtualization, and NVMe-oF. With PCIe Gen5 host interface, this adapter maximizes data movement for GPU clusters and high-frequency trading environments.
Key Features
- Ultra-high throughput: Dual-port NDR 400Gb/s InfiniBand or 400GbE, PCIe Gen5 x16
- In-Network Computing: SHARPv3 collective operations offload, rendezvous protocol offload, on-board memory for bursts
- Hardware Security Engines: Inline IPsec/TLS/MACsec AES-GCM 128/256-bit, secure boot with hardware root-of-trust
- Precision Timing: IEEE 1588v2 PTP (12ns accuracy), SyncE, class C G.8273.2, time-triggered scheduling
- Accelerated Storage and GPUDirect: GPUDirect RDMA, GPUDirect Storage, NVMe-oF offload, T10-DIF signature handover
- SDN and Overlay Offloads: VXLAN, GENEVE, NVGRE, programmable flexible parser, connection tracking (L4 firewall)
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | MCX755106AS-HEAT |
| Form Factors | PCIe HHHL / FHHL, OCP 3.0 SFF/TSFF |
| InfiniBand Speeds | NDR 400Gb/s, HDR 200Gb/s, EDR 100Gb/s |
| Ethernet Speeds | 400GbE, 200GbE, 100GbE, 50GbE, 25GbE, 10GbE |
| Network Ports | 1/2/4 port configurations (2-port typical for this model) |
| Host Bus | PCI Express Gen 5.0 (compatible with Gen4/Gen3), up to x32 lanes |
| Security Offloads | Inline IPsec, TLS 1.3, MACsec, secure boot, flash encryption |
| RDMA / Transport | Hardware reliable transport, XRC, DCT, On-Demand Paging, UMR, GPUDirect RDMA |
Typical Deployments
- AI and Large Language Model clusters: RDMA and GPUDirect accelerating distributed training
- High-Performance Computing (HPC): MPI offloads, SHARPv3 for in-network reduction
- Cloud and Edge data centers: Overlay network acceleration, VXLAN offload, SR-IOV
- Software-defined storage (SDS): NVMe/TCP, NVMe-oF, iSER, NFS over RDMA
- Real-time analytics and trading: Ultra-low latency plus PTP class C synchronization
Compatibility
| Component / Ecosystem | Supported Options |
|---|---|
| Host Interface | PCIe Gen5 (up to x32 lanes), PCIe bifurcation, Multi-Host (4 hosts) |
| Operating Systems | Linux (RHEL, Ubuntu), Windows Server, VMware ESXi, Kubernetes |
| Virtualization and Containers | SR-IOV, VirtIO acceleration, NVMe over TCP offload |
| HPC Middleware / Libraries | OpenMPI, MVAPICH, MPICH, UCX, NCCL, UCC, OpenSHMEM, PGAS |
| Storage Protocols | NVMe-oF (RDMA/TCP), SRP, iSER, NFS over RDMA, SMB Direct, GPUDirect Storage |
Why Choose Starsurge + NVIDIA ConnectX-7
- Genuine and certified parts with full warranty and secure supply chain
- Pre-sales architecture consulting for HPC and AI cluster design
- Global logistics and fast fulfillment with worldwide stock locations
- Custom firmware and OEM options for bulk configuration
- Post-sales technical support including driver integration and firmware updates
Frequently Asked Questions
What is the difference between NDR InfiniBand and 400GbE mode?
NDR includes SHARP, adaptive routing, and hardware reliable transport natively; Ethernet mode uses RoCE for RDMA. ConnectX-7 supports both.
Is MCX755106AS-HEAT compatible with PCIe Gen4?
Yes, backward compatible with PCIe Gen4 and Gen3, but at reduced lane speed.
Does this model support Multi-Host?
Yes, ConnectX-7 supports NVIDIA Multi-Host technology (depends on SKU and cabling).
What encryption is accelerated inline?
IPsec, TLS, and MACsec (AES-GCM 128/256-bit), all offloaded from CPU.
Installation Notes
- Ensure proper airflow in server chassis when using high-power transceivers
- Use firmware validated by Starsurge or NVIDIA
- Install latest MLNX_OFED driver for full offload capabilities
- Verify QSFP-DD or OSFP compatibility for 400G optics
About Hong Kong Starsurge Group
Hong Kong Starsurge Group Co., Limited is a technology-driven provider of network hardware, IT services, and system integration solutions. Founded in 2008, the company serves customers worldwide with products including network switches, NICs, wireless access points, controllers, cables, and related equipment.
Backed by an experienced sales and technical team, Starsurge supports industries such as government, healthcare, manufacturing, education, finance, and enterprise. The company is an authorized partner for leading brands including NVIDIA networking products.
Note: Full specifications vary by exact SKU. Please confirm port count and cable support with sales team.
