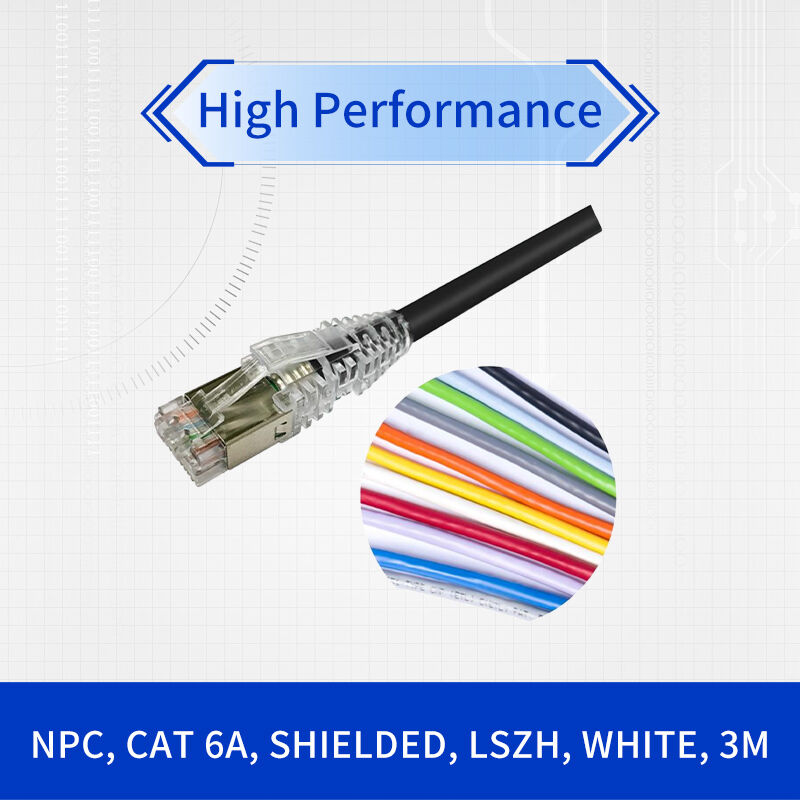

NPC6ASZDB Shielded Cat6E Patch Cable - High-Speed 10Gbps Ethernet Cord with RJ45 Connectors
Dettagli:
| Marca: | Commscope |
| Numero di modello: | NPC6ASZDB-WT003M |
| Documento: | NPC6ASZDB.pdf |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 pz |
|---|---|
| Prezzo: | Negotiate |
| Imballaggi particolari: | scatola |
| Tempi di consegna: | Basato sull'inventario |
| Termini di pagamento: | T/T |
| Capacità di alimentazione: | Fornitura per progetto/batch |
|
Informazioni dettagliate |
|||
| Variazione della resistenza al contatto: | 6A | Tipo di cavo: | S/FTP (bloccato) |
|---|---|---|---|
| Tipo di conduttore: | Torsione multifilo | Connettore a: | Spina RJ45 |
| Caratteristiche del connettore, connettore A: | Standard | Connettore b: | Spina RJ45 |
| Caratteristiche di connessione, connettore B: | Standard | Lunghezza: | 3m |
| Evidenziare: | Shielded Cat6E Ethernet cable,10Gbps RJ45 patch cord,High-speed Cat6E network cable |
||
Descrizione di prodotto
NPC6ASZDB Shielded Cat6E Patch Cable - High-Speed 10Gbps Ethernet Cord with RJ45 Connectors
NPC6ASZDB Cat6E Shielded Network Patch Cord - Premium Ethernet Connectivity
Performance Highlights
- Enhanced EMI/RFI shielding technology
- 10Gbps data transmission capability
- Low smoke zero halogen safety jacket
- High-density deployment optimized
- Industrial-grade durability
- Global compliance certifications
Technical Specifications
Physical Properties
Cable Type: SFTP Cat6E
Jacket Material: LSZH
Diameter: 5.84mm
Colors: 9 options available
Performance Data
Data Rate: Up to 10Gbps
Frequency: 500MHz
Voltage Rating: 300V
Impedance: 100Ω ±15%
Applications & Deployment
This high-performance Cat6E patch cord is engineered for critical network infrastructure including:
- Data Centers: Server connectivity and switch interconnections
- Enterprise Networks: Workstation to wall plate connections
- Industrial Automation: Factory floor networking
- Healthcare Facilities: Medical equipment connectivity
- Educational Institutions: Classroom and lab deployments
Compliance & Certifications
| Standard | Description | Compliance |
|---|---|---|
| ANSI/TIA-568.2-D | Category 6A Performance | Fully Compliant |
| ISO/IEC 11801 | Class EA Specifications | Fully Compliant |
| UL 1863 | Safety Certification | Certified |
| IEEE 802.3b1 | Type 4 Compatibility | Compatible |
Installation Guidelines
Critical Installation Parameters
- Maintain minimum bend radius of 25mm during installation
- Ensure proper grounding for shielded systems
- Use appropriate cable management to avoid stress on connectors
- Verify termination with certified test equipment
- Follow local electrical codes and regulations
