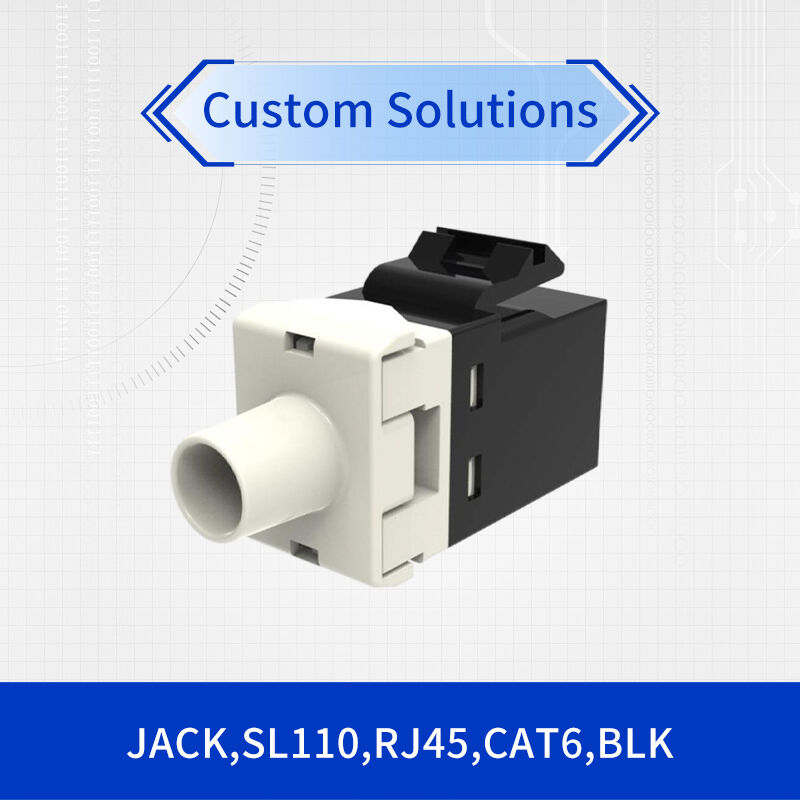

SL-Series Modular Jack, RJ45, Cat6 Unshielded, Black 24 ea/pkg
Dettagli:
| Marca: | CommScope |
| Numero di modello: | 9-1375055-2 |
| Documento: | 9-1375055-2 _ S...24.pdf |
|
Informazioni dettagliate |
|||
| Categoria delle prestazioni: | categoria 6 | Tipo di cavo: | Non schermato |
|---|---|---|---|
| Colore: | Nero | Tipo di conduttore: | Solido | Incagliato |
| Tipo di copertura antipolvere integrata: | Nessuno | Montaggio: | Placche e pannelli della serie SL |
| Evidenziare: | Cat6 unshielded modular jack,RJ45 modular jack black,24-pack Cat6 Ethernet connector |
||
Descrizione di prodotto
The CommScope NETCONNECT SL110-6-BK-24 delivers premium Category 6 performance in a sophisticated black housing, designed to complement modern network infrastructure aesthetics. This modular jack provides reliable RJ45 connectivity with exceptional transmission characteristics, making it suitable for both commercial and enterprise deployments.
This Category 6 modular jack is packaged in quantities of 24 units, providing optimal efficiency for medium to large-scale installations. The inverted jack face design enhances protection against environmental contaminants while maintaining consistent electrical performance.
- Category 6 performance with black aesthetic design
- 24 units per package for project efficiency
- IEEE 802.3bt Type 4 PoE support (90W)
- 200+ termination cycle reliability
- Gold-plated beryllium copper contacts
- UL 94 V-0 flame retardant rating
| Parameter | Specification |
|---|---|
| Product Number | SL110-6-BK-24 |
| Performance Category | Category 6 |
| Connector Type | RJ45 Modular Jack |
| Housing Color | Black |
| Package Quantity | 24 units |
| Contact Material | Gold-plated Beryllium Copper |
| PoE Capability | IEEE 802.3bt Type 4 (90W) |
| Termination Cycles | 200+ |
| Operating Temperature | -10°C to +60°C |
This Category 6 modular jack maintains exceptional electrical characteristics with maximum contact resistance of 100 mOhm and variation under 20 mOhm. The modular jack supports current ratings of 1.5A at 20°C and features robust dielectric strength with 1,500 Vac withstand voltage between conductive surfaces.
The SL110-6-BK-24 modular jack fully supports high-power PoE applications per IEEE 802.3bt Type 4 specifications, delivering up to 90W to connected devices. This modular jack demonstrates exceptional durability by maintaining performance through more than 3,000 mating cycles under full PoE load conditions.
This modular jack features insulation displacement contact (IDC) termination that accommodates both solid (24-22 AWG) and stranded (26-24 AWG) conductors. The recommended JTT termination tool ensures precise and reliable connections through more than 200 termination cycles.
CommScope's SL110-6-BK-24 modular jack meets rigorous international standards including ANSI/TIA-568.2-D and ISO/IEC 11801 Class E. The product carries UL and cUL safety certifications along with RCM compliance for Australian and New Zealand markets.
Each package contains 24 modular jacks, providing optimal quantity for medium to large-scale installations while minimizing packaging waste.
This Category 6 modular jack supports IEEE 802.3bt Type 4 PoE (90W) and maintains performance through 3,000+ mating cycles under full electrical load, ensuring long-term reliability.
- Use the recommended JTT termination tool for consistent IDC connections
- Maintain proper cable management and bend radius during installation
- Ensure complete conductor seating in IDC terminals for optimal performance
- Maintain consistent T568A or T568B wiring scheme throughout installation
- Install included strain relief caps for permanent cable retention
