Ruckus Switch Icx 8200-48zp2-E
Dettagli:
| Marca: | RUCKUS |
| Model Number: | ICX 8200-48ZP2-E |
Termini di pagamento e spedizione:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | carton |
| Delivery Time: | 7-10days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/month |
|
Informazioni dettagliate |
|||
| Model NO.: | RUCKUS ICX 8200-48ZP2-E | Transmission Rate: | 1000Mbps |
|---|---|---|---|
| Ports: | ≧48 | Weight: | 4.96 Kg |
| Operating Temperature: | Operating: 0°c to 45°c | Power Supply: | 1839W |
| Uplinks: | 4X 1/10/25 Gbps SFP/SFP+/SFP28 Uplinks | Transport Package: | Carton |
| Specification: | 28cm*40.64cm*4.4cm | Trademark: | Ruckus |
| Origin: | China | ||
Descrizione di prodotto

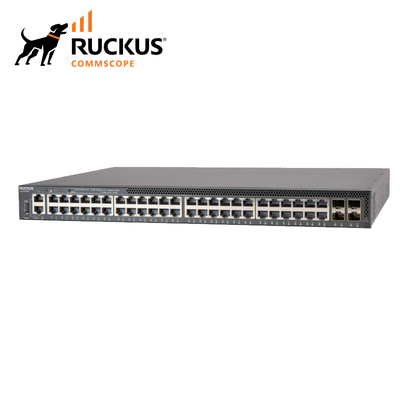

RUCKUS ICX 8200-48ZP2-E
Enterprise-class stackable access switch with future-proof expandability
Enterprise-class stackable access switch with future-proof expandability
he RUCKUS ICX 8200-48ZP2-Eraises the bar with up to 8× 25 GbE ports for uplinks or stacking, PoE++ (802.3bt), VXLAN, advanced L2/L3 features ICX 8200-48ZP2-E
and market-leading stacking density with up to 12 switches per stack. In addition, the RUCKUS ICX 8200-48ZP2-E combines enterprise-class features,
manageability, performance, and reliability with the flexibility, cost effectiveness, and "pay as you grow" scalability of stackable solution.
and market-leading stacking density with up to 12 switches per stack. In addition, the RUCKUS ICX 8200-48ZP2-E combines enterprise-class features,
manageability, performance, and reliability with the flexibility, cost effectiveness, and "pay as you grow" scalability of stackable solution.
RUCKUS ICX 8200-48ZP2-E 32×10/100/1000 Mbps PoE+ ports, 16×100/1000/2500 Mbps RJ-45 PoE++ ports, 4×25 GbE SFP28 stacking/
uplink-ports, 740 W PoE budget (with one PSU), hot swap power supplies and fans, one power supply and one fan included, three-year
remote TAC support. Power cord not included.ICX 8200-48ZP2-E
uplink-ports, 740 W PoE budget (with one PSU), hot swap power supplies and fans, one power supply and one fan included, three-year
remote TAC support. Power cord not included.ICX 8200-48ZP2-E
|
|
RUCKUS ICX 8200-48ZP2-E
|
|
Switching capacity (data rate, full duplex)
|
334 Gbps
|
|
Forwarding capacity (data rate, full duplex)
|
254 Mpps
|
|
10/100/1000 Mbps RJ45 ports
|
32
|
|
100/1000 Mbps/2.5 Gbps RJ45
downlinks (full duplex only) |
16
|
|
1/10 Gbps SFP/SFP+ uplinks
|
-
|
|
1/10/25 Gbps SFP/SFP+/SFP28 uplinks
|
4
|
|
PoE/PoE+ 802.3at ports
|
32
|
|
Dual hot-swap power supplies and fan modules
|
yes
|
|
Max PoE Class 3 ports (15.4 W per port)
|
48
|
|
Max PoE+ Class 4 ports (30 W per port)
|
24 (1 PSU)
48 (2 PSU) |
|
Maximum PoE++ Class 6 ports
(60 W per port) |
12 (1PSU)
16 (2 PSU) |
|
Maximum PoE++ Class 8 Ports (90 W per port)
|
8(1PSU)
16 (2PSU |
|
Advanced IPv4/v6 Layer 3 (OSPF, VRRP, VRF, GRE, PIM, PBR)
|
With License
|
|
Aggregated stacking bandwidth (data rate, full duplex)
|
1.2 Tbps
|
|
Stacking density (maximum switches in a stack)
|
12
|
|
Stacking ports (maximum ports usable for stacking)
|
Up to 4×25 GbE SFP28
|
|
Maximum stacking distance (distance between stacked switches)
|
10 km
|
Product Description
Company ProfileCompany Introduction
Company Introduction
Our company has more than10 years of experience, hasa large factory,and strong technical team support, accumu-lated aarge number of customers and expe-rience, can provide you with thelowest priceof products and the best quality service.The agency brands include Mellanox, Ruckus, Aruba, Extreme, etc., main products includes original brand new network switch, network card, wireless Access Point , wireless controller, cable etc.We have 10 million inventory for you tochoose, can provide a variety of types ofproducts, large quantities of supply.After ensuring the accurate arrival of yourgoods, provide customer service 24 hours consultation and technical support.With a professional sales and technical team, we have earned ourselves a high reputation among the world market.
CUSTOMER REVIEW /corporate strength
Ø We have many products of Mellanox, Extreme, Aruba etc. Such as witches, network cards, cables, modules, wireless APs as so on.
Ø We are an elite agent of Mellanox .
Ø We are the largest agents of Extreme in China.
Ø Our main office is in Beijing, and our branches are in Nanjing, Shanghai, Guangzhou,Shenzheng and Hong Kong. We have warehouses in Beijing, Nanjing, and Hong Kong, with a large amount of original and new product inventory, which can achieve fast delivery in multiple locations.
Ø Our products are mainly applicated for PC (high performance computing), cloud computing, data centers, enterprise computing, storage, and has software development capabilities.
Ø We had provided intelligent transformation total solution for many customers in the fields of artificial intelligence, supercomputing, government and enterprise research institutes, universities, the Internet, and other industries. Such as BerryGenomics, FedEx, Tsinghua Research Institute etc.
Ø We are an elite agent of Mellanox .
Ø We are the largest agents of Extreme in China.
Ø Our main office is in Beijing, and our branches are in Nanjing, Shanghai, Guangzhou,Shenzheng and Hong Kong. We have warehouses in Beijing, Nanjing, and Hong Kong, with a large amount of original and new product inventory, which can achieve fast delivery in multiple locations.
Ø Our products are mainly applicated for PC (high performance computing), cloud computing, data centers, enterprise computing, storage, and has software development capabilities.
Ø We had provided intelligent transformation total solution for many customers in the fields of artificial intelligence, supercomputing, government and enterprise research institutes, universities, the Internet, and other industries. Such as BerryGenomics, FedEx, Tsinghua Research Institute etc.
Authorization and Certification
Our company cooperate with many famous brands have, company is nvidia elite agents, sales Mellanox related network products, at the same time also is Extreme, the Ruckus, Aruba, H3C and other gold medal agent has many brands of engineer's qualification certificate, to provide reliable technical support.
Packing & Delivery
Our network products are all packaged in brand-new original sealed boxes. They are unopened after leaving the factory. The quality is guaranteed. On the packaging, we use high-density EPE pearl cotton, anti-static air cushion films and other professional cushioning materials, combined with custom hard cardboard boxes for reinforcement. They provide comprehensive protection against shock, moisture and static electricity. We offer various shipping methods such as air express, international dedicated lines, and sea transportation for delivery, covering 100+ countries and regions worldwide. The logistics information can be checked in real time. The products enjoy a one-year warranty. Damaged during transportation can be returned or exchanged for free. You can make your purchase with peace of mind.
FAQ
Q1: What can you buy from us?
A: Mellanox, Aruba, Rukus, Extreme brand products, including switches, network cards, cables, AccessPoint, etc.
A: Mellanox, Aruba, Rukus, Extreme brand products, including switches, network cards, cables, AccessPoint, etc.
Q2: How about the delivery date?
A: It usually takes 3-5 working days. For specific models, please contact us to check thestock. In the end, the actual consultation shall prevail. We will do our best to deliver as soon as possible.
Q3: What's yourwarranty terms?
A: We supply 12 months warranty time.
Q4: How about the Shipping Method?
A: We use Fedex/DHL/UPS/TNT and other air shipments,sea shipments are also workable. In one words, we could do any shipments that you wanted.
Q5: Can I get some samples?
A: Yes, sample order is available for quality check and market test. You only need to pay the sample cost and express cost.
A: It usually takes 3-5 working days. For specific models, please contact us to check thestock. In the end, the actual consultation shall prevail. We will do our best to deliver as soon as possible.
Q3: What's yourwarranty terms?
A: We supply 12 months warranty time.
Q4: How about the Shipping Method?
A: We use Fedex/DHL/UPS/TNT and other air shipments,sea shipments are also workable. In one words, we could do any shipments that you wanted.
Q5: Can I get some samples?
A: Yes, sample order is available for quality check and market test. You only need to pay the sample cost and express cost.
Q6: What are your core strengths?
A: First-hand supply, Original and new products with the favorable price and perfect after-sales service
A: First-hand supply, Original and new products with the favorable price and perfect after-sales service
Q7: Price questions
A: The inventory turnover is fast, and the cost of each batch of goods fluctuates according to the market price. The final price is subject to the sales quotation. Please understand.
A: The inventory turnover is fast, and the cost of each batch of goods fluctuates according to the market price. The final price is subject to the sales quotation. Please understand.
Vuoi conoscere maggiori dettagli su questo prodotto
